Run symbolic regression from Python

This example fits an expression to Python data and prints the best R² value after each generation. Python calls the HeuristicLib symbolic regression runner through pythonnet.

Experimental interop

Python interop is under development. HeuristicLib does not have a pip package. Build the .NET projects locally before running this example.

Prepare the environment

Publish the interop assembly and install pythonnet:

dotnet publish src/HeuristicLib.PythonInterop --configuration Release
python -m venv .venv
.venv\Scripts\activate
python -m pip install pythonnet

On Linux or macOS, activate the environment with source .venv/bin/activate.

Fit an expression

Save this script as fit.py in the repository root:

from pathlib import Path
import sys

from pythonnet import load

load("coreclr")

import clr

publish_dir = Path(
    "src/HeuristicLib.PythonInterop/bin/Release/net10.0/publish"
).resolve()
sys.path.append(str(publish_dir))
clr.AddReference("HEAL.HeuristicLib.PythonInterop")

from System import Array, Double, Func
from HEAL.HeuristicLib.Encodings.SymbolicExpressions import ExpressionTree
from HEAL.HeuristicLib.Objectives import ObjectiveVector
from HEAL.HeuristicLib.PythonInterop import (
    InteractiveSymbolicRegression,
    InteractiveSymRegParameters,
)

x = Array[Double]([-2.0, -1.0, 0.0, 1.0, 2.0])
y = Array[Double]([5.0, 2.0, 1.0, 2.0, 5.0])

parameters = InteractiveSymRegParameters()
parameters.PopulationSize = 100
parameters.Generations = 30
parameters.TreeLength = 20
parameters.TreeDepth = 8
parameters.Seed = 42


def observe_population(trees, objectives):
    best_r2 = max(float(objective[0]) for objective in objectives)
    print(f"best R²: {best_r2:.4f}")

    return Array[Array[Double]](
        [Array[Double]([float(objective[0])]) for objective in objectives]
    )


callback = Func[
    Array[ExpressionTree],
    Array[ObjectiveVector],
    Array[Array[Double]],
](observe_population)

population = InteractiveSymbolicRegression.Run(
    x,
    y,
    callback,
    parameters,
)

best = max(
    population.EvaluatedCandidates,
    key=lambda candidate: float(candidate.ObjectiveVector[0]),
)

expression = InteractiveSymbolicRegression.FormatTree(best.Candidate)
print(f"model: {expression}")
print(f"R²: {float(best.ObjectiveVector[0]):.4f}")

Run it with:

python fit.py

The target samples follow y = x² + 1. The genetic programming run searches for an expression rather than receiving that equation as a fixed model form.

The callback receives every evaluated population. It returns the objective values unchanged after printing progress. A Python application can use the same callback to store a quality curve or update a plot.

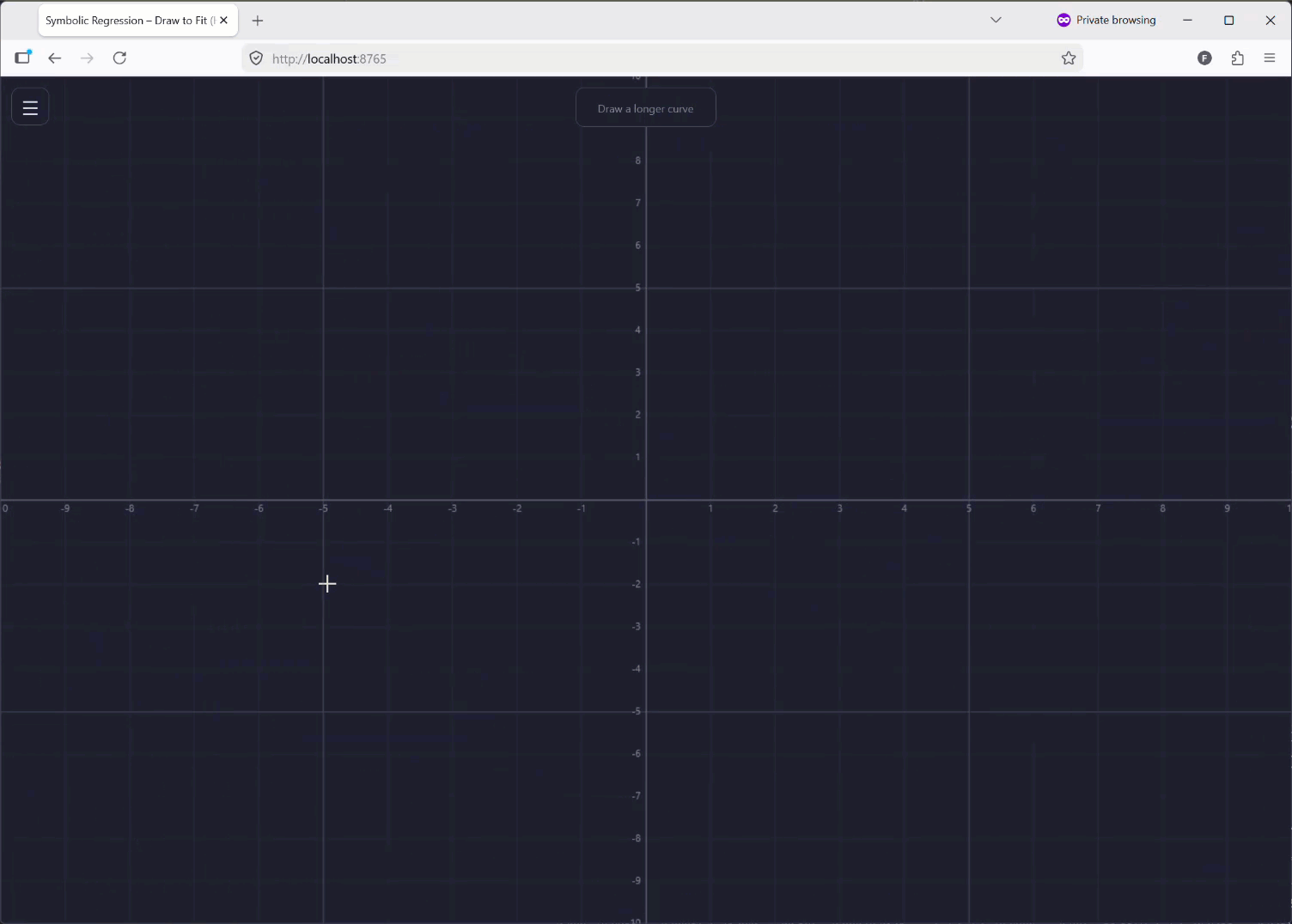

Interactive application

The repository also contains a FastAPI application that streams each population to a browser:

Run the interactive demonstrator after publishing the interop assembly:

python -m pip install -r examples/PythonInteractiveDemonstrator/requirements.txt
python examples/PythonInteractiveDemonstrator/app.py

Read Python interop for loading rules, available helpers and current limitations.
